Signal Converter / Current Transducer (A to mA converter) ; Input:0-5A & Output: 4-20mA

ELECTRICAL TRANSDUCERS :

    PEPL make Transducers are specifically designed for AC Power Line parameters, like Voltage, Current, Wattage, Var, PowerFactor, Frequency and DC isolation. These Transducers give a Load Independent and isolated DC output directly proportionalto the input parameters. These reliable and accurate Transducers are ideal for applications in all sectors of the Power andProcess Industries.

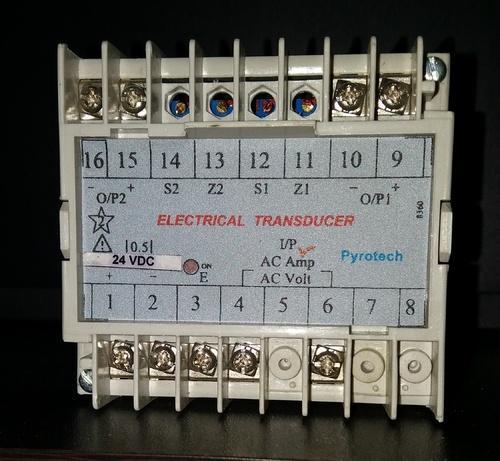

Signal Converter ( Current Transducer) ; Input:0-5A & Output: 4-20mA ; Model Number: 2PT-2024
Ask For Price

Product Details ::

  • Product Type : Convertor/Transducer
  • Product Brnad : Pyrotech
  • Input : 0-5Amp
  • Output : 4-20mA
  • Housing Size : 70 x 75 x 112 mm
  • Aux Supply : 24 VDC
  • Accuracy Class : Accuracy Class: 0.5
View Details

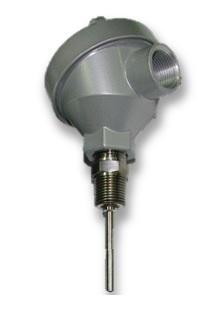

RTD (resistance temperature detector)
Ask For Price

Product Details ::

  • Product Type : Temperature Sensor
  • Product Brnad : SI
  • Range : 0-200 째C
  • Dia : 8 x 250 mm
  • Thermowell ID : 10mm
  • Thermowell OD : 14mm
  • Length: 200 mm
  • Instrument Conn.: 1/2"BSP(F)
  • Instrument Conn.: 1/2"BSP(M)
View Details
16 Window Alarm Annunciator MODEL: 4 x 4N
Ask For Price

Specifications:

  • Supply Voltage : 90-270 VAC/DC or 20-60 VDC.
  • Push Button Controls: On board Test, Silence(optional),Accept, Reset buttons.
  • No. of windows: 12 Window (4R x 4C). Window size: 40 x 40 mm.
  • No of LED`s per Window: Super bright 4 LED`s in Parallel.
  • Scan time: Less than 10 ms. Response Time: Less than 10 ms.
  • Fault Input Contacts: Potential free contact needed. (LIVE Input Fault Contact can be Optional ).
  • Cutout size: 225(W) x 175(H) mm. Over all Size: 244(W) x 194(H) x 160(D) mm.
View Details
42 Window Alarm Annunciator MODEL: 6 x 7N
Ask For Price

Specifications:

  • Supply Voltage : 90-270 VAC/DC or 20-60 VDC.
  • Push Button Controls: On board Test, Silence(optional),Accept, Reset buttons.
  • No. of windows: 42 Window (6R x 7C). Window size: 40 x 40 mm.
  • No of LED`s per Window: Super bright 4 LED`s in Parallel.
  • Scan time: Less than 10 ms. Response Time: Less than 10 ms.
  • Fault Input Contacts: Potential free contact needed. (LIVE Input Fault Contact can be Optional ).
  • Cutout size: 320 (W) x 260 (H) mm. Over all Size: 345(W) x 285(H) x 160 (D) mm.
View Details
