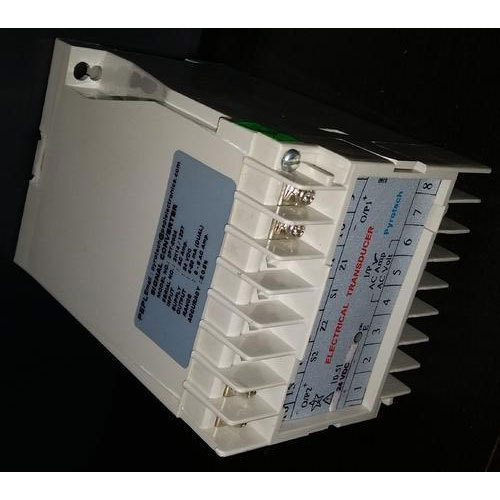

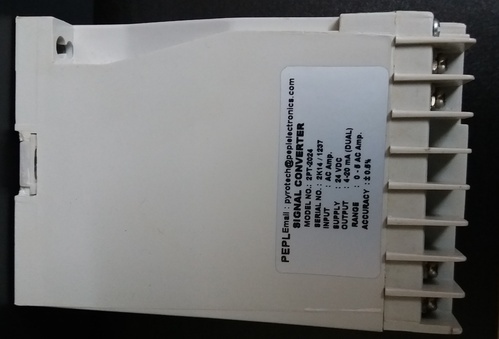

Signal Converter ( Current Transducer) ; Input:0-5A & Output: 4-20mA ; Model Number: 2PT-2024

Product Details:

  • Product Type: Signal Converter/ Electrical Transducer
  • Brand: Pyrotech
  • Part Number: 2PT-2024
  • Input : 0-5Amp.
  • Output : 4-20mA
  • Aux Supply : 24 VDC
  • Housing Size : 70 x 75 x 112 mm
  • PEPL make Transducers are specifically designed for AC Power Line parameters, like Voltage, Current, Wattage, Var, Power Factor, Frequency and DC isolation.TheseTransducers give a Load Independent and isolated DC output directly proportional to the input parameters. These reliable and accurate Transducers are ideal for applications in all sectors of the Power and Process Industries.
  • These are widely used for Automation and Control of Power and Process Systems as well as for Local and Remote Monitoring of the electrical parameters at every stage of Electricity Generation, Transmission& Distribution. They are ideal for SCADA, Energy Management,Telemetering, Data-Logging as well as Central Monitoring Systems.
  • TheTransducers are designed to comply the requirements of 688 (second edition) and I.S.12784 (Part 1). All Transducers pass through a stringent manufacturing and in-house quality control process consisting of vibration, burn-in and calibration tests to ensure complete reliability and accuracy during the continuous operation. For testing, we have Hsiang-Cheng make calibrator with accuracy better than 0.02%. IEC
  • Types AC Current AC Voltage Frequency DC Isolation (Optical) DC Voltage Tap Position Reactive Power / Var* Power Factor* Active Power / Watt* Apparent Power (VA)* (*) 1Phase & 3 Phase Balanced or Unbalanced System
