Synergy (Siemens SOftware)
S7-1200 PLC Siemens
| HMI Basic Catalog Number | Description |
|---|---|
| 6AV2123-2DB03-0AX0 | SIMATIC HMI KTP400 Basic; 4.3 inch TFT, 64K colors |
| 6AV2123-2GB03-0AX0 | SIMATIC HMI KTP700 Basic; 7 inch TFT, 64K colors |
| 6AV2123-2JB03-0AX0 | SIMATIC HMI KTP900 Basic; 9 inch TFT, 64K colors |
| 6AV2123-2MB03-0AX0 | KTP1200 Basic and KTP1200 Basic DP; 12 inch TFT display, 64K colors |
| 6AV2123-2MA03-0AX0 | KTP1200 Basic and KTP1200 Basic DP; 12 inch TFT display, 64K colors |
SIMATIC HMI Key Panels
| HMI Key Panels Catalog Number | Description |
|---|---|
| 6AV3688-3AY36-0AX0 | SIMATIC HMI KP8; Number of keys 8;Interfaces 2 x RJ45 for PROFINET with integrated switch |
| 6AV3688-3AF37-0AX0 | SIMATIC HMI KP8F; Number of keys 8;Interfaces 2 x RJ45 for PROFINET with integrated switch |
| 6AV3688-3EH47-0AX0 | SIMATIC HMI KP32F; Number of keys 8;Interfaces 2 x RJ45 for PROFINET with integrated switch |

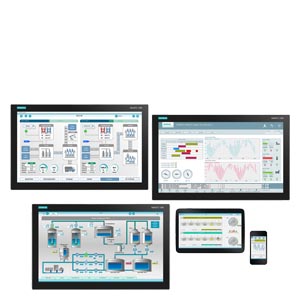

WinCC system software V7.5 SP1, RT 8192 (8192 Power Tags), runtime software
| Catalog Number | Description |
|---|---|
| 6AV63812BH074AH0 | WinCC system software V7.4 SP1, RT 8192 (8192 Power Tags), runtime software-Online |
| 6AV63812BH074AV0 | WinCC system software V7.4 SP1, RT 8192 (8192 Power Tags), runtime software -DVD |
| 6AV63812BH075AV0 | WinCC System SW V7.5 Asia, RT 8192 (8192 PowerTags), runtime software, Single license, SW and documentation on DVD, License key on USB stick |
| 6AV63811BC051AQ0 | WinCC RT 128 (128 PowerTags) |
Simatic S7-300 Siemens
| Catalog Number | Description |
|---|---|
| CPU-312 | Part No:6ES7312-1AE14-0AB0,Memory:32KB, DI:256, DO:256, AI:64, AO:64 |
| CPU-314 | Part No:6ES7314-1AG14-0AB0,Memory:64KB, DI:1024, DO:1024, AI:256, AO:256 |
| CPU 315-2DP | Part No:6ES7315-2AH14-0AB0,Memory:128KB, DI:16384, DO:16384, AI:1024, AO:1024 |
| CPU 315-2 PN/DP | Part No:6ES7315-2EH14-0AB0,Memory:128KB, DI:16384, DO:16384, AI:1024, AO:1024 |
| CPU 317-2 PN/DP | Part No:6ES7317-2EK14-0AB0,Memory:256KB, DI:65536, DO:65536, AI:4096, AO:4096 |
SIMATIC S7-400 advanced controller
| Catalog Number | Description |
|---|---|
| CPU 412 | CPU412-1, MPI/DP, 512KB; CPU412-2, MPI/DP, 1MB; CPU412-2 PN, 1MB |
| CPU 414 | CPU414-2, MPI/DP, 2MB; CPU414-3, 4MB; CPU414-3 PN/DP, 4MB |
| CPU 416 | CPU 416-2, MPI, PROFIBUS, 8MB; CPU 416-3, 16 MB; CPU416-3 PN/DP, 16MB |
| CPU 417 | CPU 417-4, 32 MB; CPU 417-4, 32 MB, 4 INTERFACES |
| CPU 412H | CPU 412-5H, CPU 414-5H, CPU 416-5H, CPU 417-5H |
