Alarm Annunciators

Models ranging from 1 to 64 window with various combinations :

    PROTON Alarm Annunciators continuously monitor the various process parameters and equipment status in power-stations, process plants and these parameter are displayed at centralized control room or on control panel. PROTON Annunciators stand for instant alarming of any abnormal condition occurs during process and protect the valuable equipments. PROTON Annunciators ensure the higher order of reliability and thus provide a comprehensive service to the industry for monitoring, alarm and control of process plant parameters.

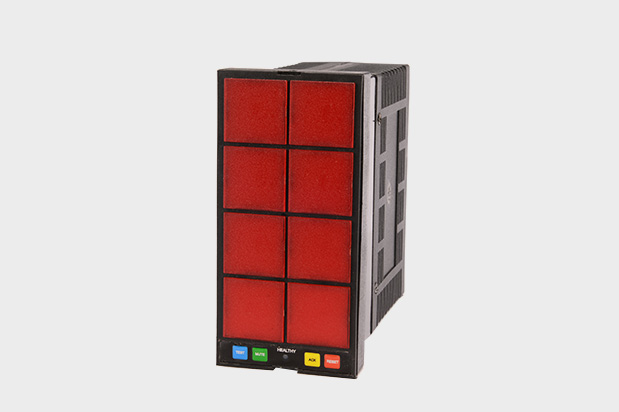

8 Window Alarm Annunciator MODEL: PRO8-1D
Ask For Best Price

Specifications:

  • Supply Voltage : 90-270 VAC/DC or 20-60 VDC.
  • Push Button Controls: On board Test, Silence(optional),Accept, Reset buttons.
  • No. of windows: 08 Window (4R x 2C). Window size: 30 x 30 mm.
  • No of LED`s per Window: Super bright 4 LED`s in Parallel.
  • Scan time: Less than 10 ms. Response Time: Less than 10 ms.
  • Fault Input Contacts: Potential free contact needed. (LIVE Input Fault Contact can be Optional ).
  • Cutout size: 68(W) x 138(H) mm. Over all Size: 72(W) x 144(H) x 160(D) mm.
View Details
12 Window Alarm Annunciator MODEL: 3 X 4N
Ask For Price

Specifications:

  • Supply Voltage : 90-270 VAC/DC or 20-60 VDC.
  • Push Button Controls: On board Test, Silence(optional),Accept, Reset buttons.
  • No. of windows: 12 Window (3R x 4C). Window size: 40 x 40 mm.
  • No of LED`s per Window: Super bright 4 LED`s in Parallel.
  • Scan time: Less than 10 ms. Response Time: Less than 10 ms.
  • Fault Input Contacts: Potential free contact needed. (LIVE Input Fault Contact can be Optional ).
  • Cutout size: 212(W) x 138(H) mm. Over all Size: 220(W) x 155(H) x 160(D) mm.
View Details
16 Window Alarm Annunciator MODEL: 4 x 4N
Ask For Price

Specifications:

  • Supply Voltage : 90-270 VAC/DC or 20-60 VDC.
  • Push Button Controls: On board Test, Silence(optional),Accept, Reset buttons.
  • No. of windows: 12 Window (4R x 4C). Window size: 40 x 40 mm.
  • No of LED`s per Window: Super bright 4 LED`s in Parallel.
  • Scan time: Less than 10 ms. Response Time: Less than 10 ms.
  • Fault Input Contacts: Potential free contact needed. (LIVE Input Fault Contact can be Optional ).
  • Cutout size: 225(W) x 175(H) mm. Over all Size: 244(W) x 194(H) x 160(D) mm.
View Details
42 Window Alarm Annunciator MODEL: 6 x 7N
Ask For Price

Specifications:

  • Supply Voltage : 90-270 VAC/DC or 20-60 VDC.
  • Push Button Controls: On board Test, Silence(optional),Accept, Reset buttons.
  • No. of windows: 42 Window (6R x 7C). Window size: 40 x 40 mm.
  • No of LED`s per Window: Super bright 4 LED`s in Parallel.
  • Scan time: Less than 10 ms. Response Time: Less than 10 ms.
  • Fault Input Contacts: Potential free contact needed. (LIVE Input Fault Contact can be Optional ).
  • Cutout size: 320 (W) x 260 (H) mm. Over all Size: 345(W) x 285(H) x 160 (D) mm.
View Details
