Synergy (Siemens HMI)
S7-1200 PLC Siemens

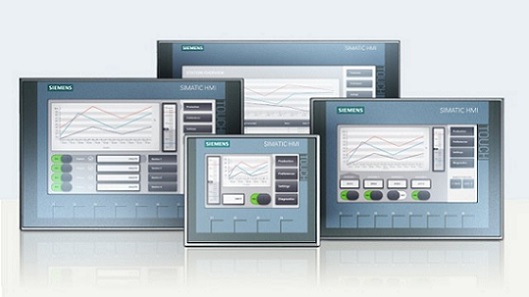

| HMI Basic Catalog Number | Description |
|---|---|
| 6AV2123-2DB03-0AX0 | SIMATIC HMI KTP400 Basic; 4.3 inch TFT, 64K colors |
| 6AV2123-2GB03-0AX0 | SIMATIC HMI KTP700 Basic; 7 inch TFT, 64K colors |
| 6AV2123-2JB03-0AX0 | SIMATIC HMI KTP900 Basic; 9 inch TFT, 64K colors |
| 6AV2123-2MB03-0AX0 | KTP1200 Basic and KTP1200 Basic DP; 12 inch TFT display, 64K colors |
| 6AV2123-2MA03-0AX0 | KTP1200 Basic and KTP1200 Basic DP; 12 inch TFT display, 64K colors |

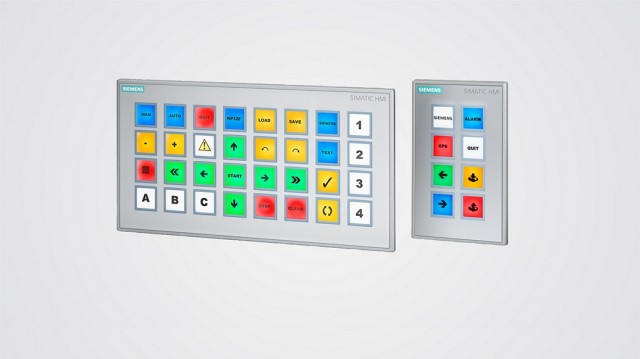

SIMATIC HMI Key Panels
| HMI Key Panels Catalog Number | Description |
|---|---|
| 6AV3688-3AY36-0AX0 | SIMATIC HMI KP8; Number of keys 8;Interfaces 2 x RJ45 for PROFINET with integrated switch |
| 6AV3688-3AF37-0AX0 | SIMATIC HMI KP8F; Number of keys 8;Interfaces 2 x RJ45 for PROFINET with integrated switch |
| 6AV3688-3EH47-0AX0 | SIMATIC HMI KP32F; Number of keys 8;Interfaces 2 x RJ45 for PROFINET with integrated switch |

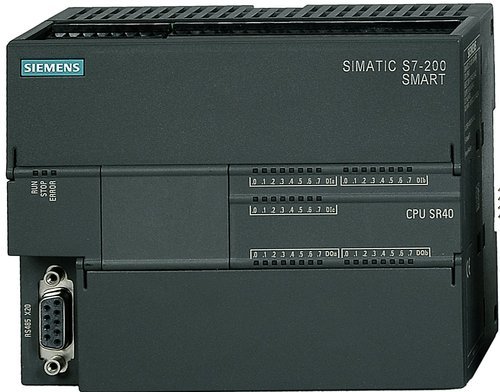

S7-200 SMART Siemens
| Catalog Number | Description |
|---|---|
| S7-200 ST20 | I/O capacity:212,comport:2,Expansion:6modules |
| S7-200 ST30 | I/O capacity:222,comport:2,Expansion:6modules |
| S7-200 ST40 | I/O capacity:232,comport:2,Expansion:6modules |
| S7-200 ST60 | I/O capacity:252,comport:2,Expansion:6modules |
| S7-200 CR40 | I/O capacity:40,comport:2,Expansion:6modules |
| S7-200 CR60 | I/O capacity:60,comport:2,Expansion:6modules |

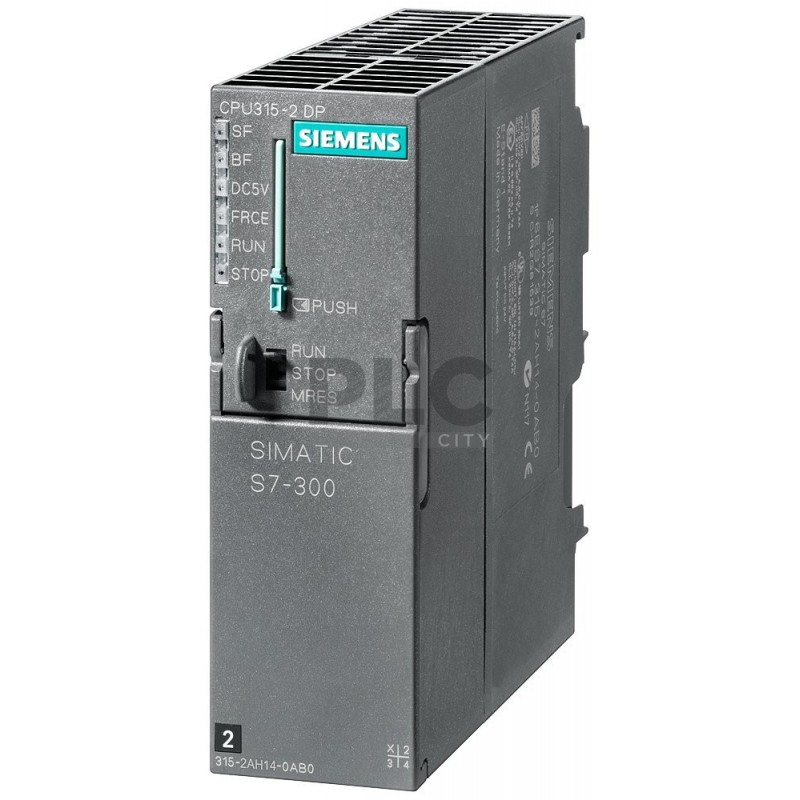

Simatic S7-300 Siemens
| Catalog Number | Description |
|---|---|
| CPU-312 | Part No:6ES7312-1AE14-0AB0,Memory:32KB, DI:256, DO:256, AI:64, AO:64 |
| CPU-314 | Part No:6ES7314-1AG14-0AB0,Memory:64KB, DI:1024, DO:1024, AI:256, AO:256 |
| CPU 315-2DP | Part No:6ES7315-2AH14-0AB0,Memory:128KB, DI:16384, DO:16384, AI:1024, AO:1024 |
| CPU 315-2 PN/DP | Part No:6ES7315-2EH14-0AB0,Memory:128KB, DI:16384, DO:16384, AI:1024, AO:1024 |
| CPU 317-2 PN/DP | Part No:6ES7317-2EK14-0AB0,Memory:256KB, DI:65536, DO:65536, AI:4096, AO:4096 |

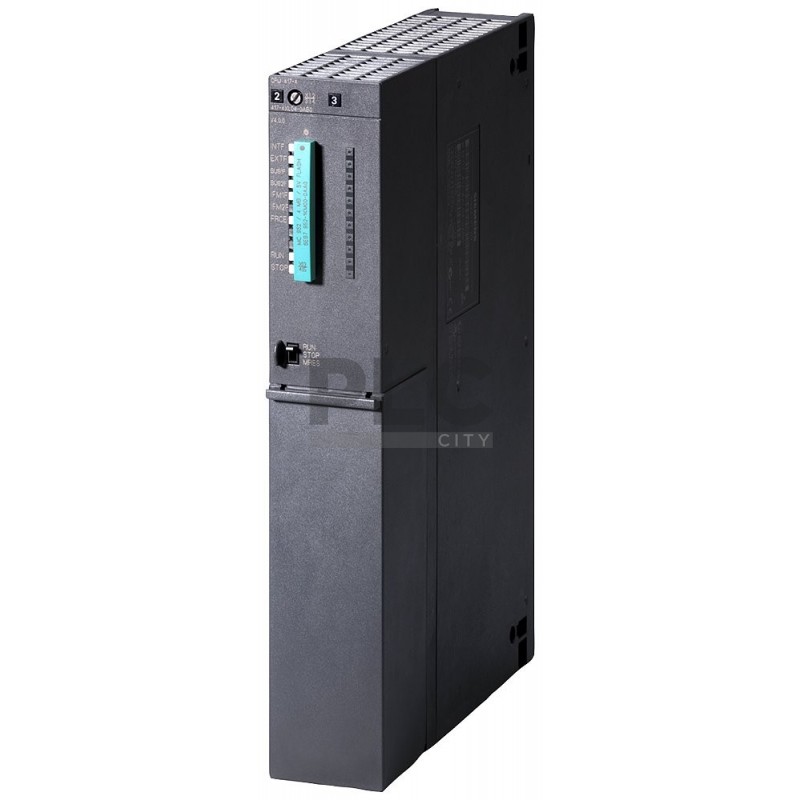

SIMATIC S7-400 advanced controller
| Catalog Number | Description |
|---|---|
| CPU 412 | CPU412-1, MPI/DP, 512KB; CPU412-2, MPI/DP, 1MB; CPU412-2 PN, 1MB |
| CPU 414 | CPU414-2, MPI/DP, 2MB; CPU414-3, 4MB; CPU414-3 PN/DP, 4MB |
| CPU 416 | CPU 416-2, MPI, PROFIBUS, 8MB; CPU 416-3, 16 MB; CPU416-3 PN/DP, 16MB |
| CPU 417 | CPU 417-4, 32 MB; CPU 417-4, 32 MB, 4 INTERFACES |
| CPU 412H | CPU 412-5H, CPU 414-5H, CPU 416-5H, CPU 417-5H |
