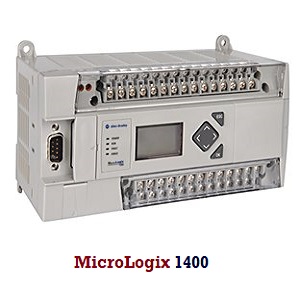

1766 MicroLogix™ 1400 Programmable Logic Controller Systems build upon critical MicroLogix 1100 features: EtherNet/IP™, on-line editing and a built-in LCD panel. These controllers feature a higher I/O count, faster high-speed counter, pulse train output, enhanced network capabilities and backlight on the LCD panel. Controllers without embedded analog I/O points provide 32 digital I/O points, while analog versions offer 32 digital I/O points and 6 analog I/O points. You can expand all versions with up to seven 1762 expansion I/O modules.
Features
Ethernet port provides Web server capability, email capability and protocol support for DNP3 protocol support
Built-in LCD with backlight lets you view controller and I/O status
Built-in LCD provides simple interface for messages, bit/integer monitoring and manipulation
Expands application capabilities through support for as many as seven 1762 Expansion modules with 256 discrete I/O
As many as six embedded 100 kHz high-speed counters (only on controllers with DC inputs)
Two serial ports with DF1, DH-485, Modbus RTU, DNP3 and ASCII protocol support
10 KB words in user program memory with 10 KB words in user data memory)
Up to 128 KB for data logging and 64 KB for recipe
